Injection Molding Machine
- Zackary Roth
- Aug 3, 2020
- 1 min read
Updated: Aug 10, 2021
This is the part I had to make a mold and an injection molding machine for.
The overall final assembly.

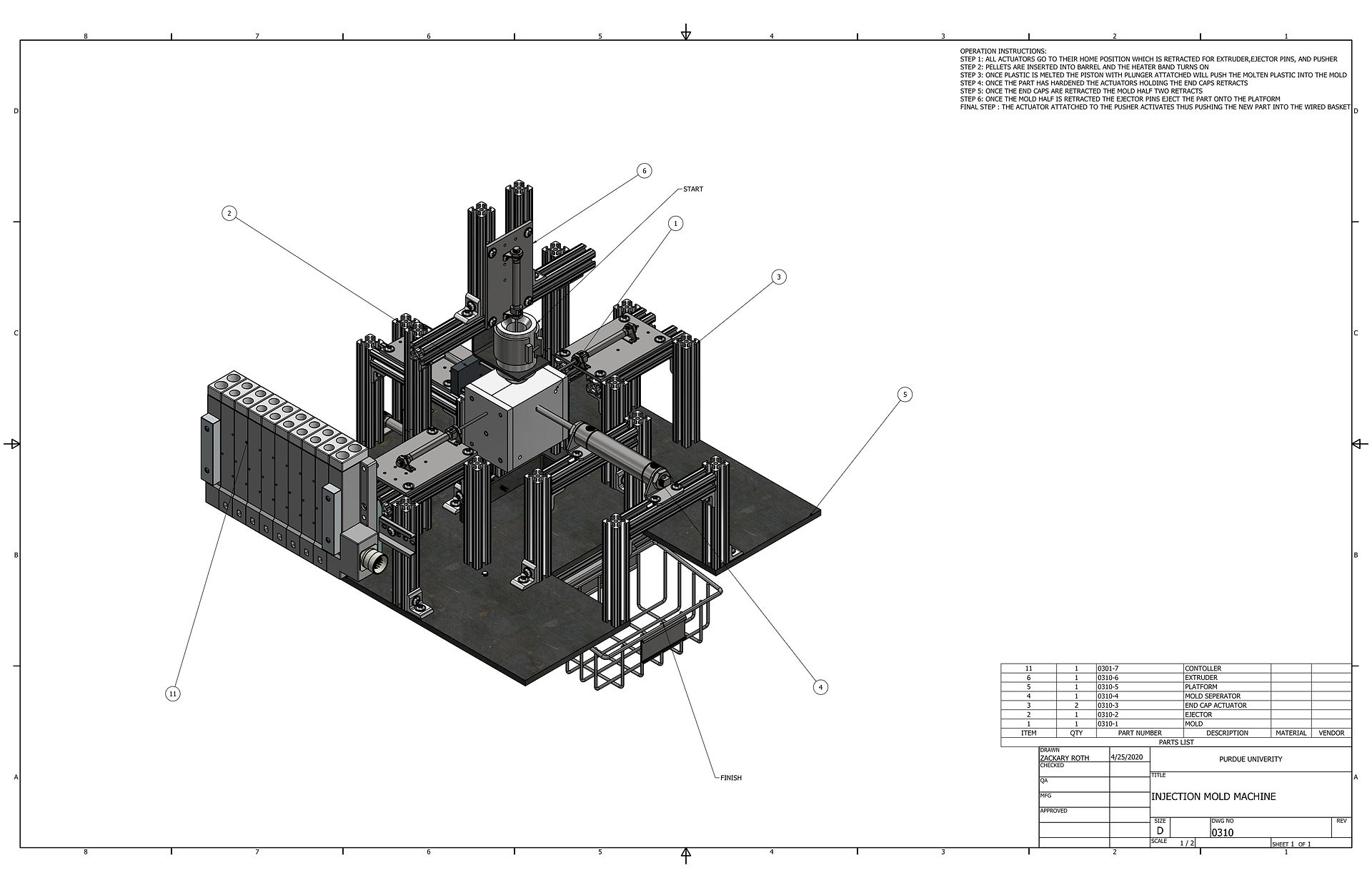

Assembly Drawings

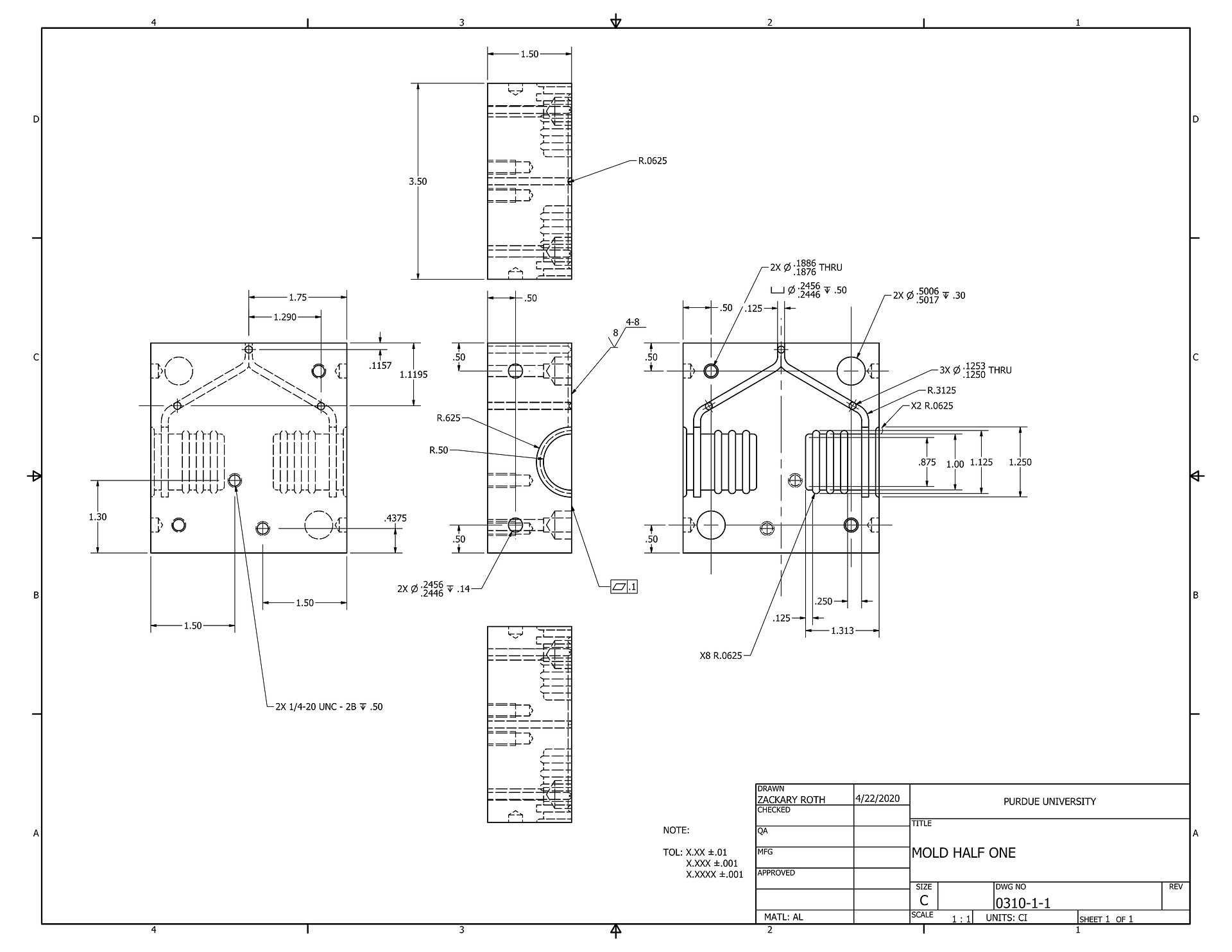

Custom Part Drawings
In this project I was able to put all of my skills and knowledge learned from class and industry to the test when designing this machine. I learned alot about this form of additive manufacturing and the technical standards that go along with it (also I would like to say after taking this class I can safely assume that if anything has a standard I am sure ANSI has one for it). Another key takeaway I would like to list from this project is learning how to think more from the manufacturing standpoint when going through the design process.
All of the work seen here was done in Inventor (30 Hours)
